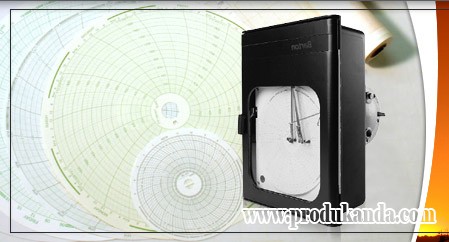

• Three pen recorder measures and records differential pressure, static pressure and temperature
• Additional pens can be mounted to record supplementary pressure data
• Available in Stainless Steel ( Model 202ES)
• Available for NACE applications ( Model 202N)
• Actuated by 199 DPU
Model 242E Recorder Receiver
• Mounts any combination of pressure elements, thermal systems, or receiver bellows
• Accepts up to four elements
• Static pressure elements feature polished 316 stainless steel construction and ranges to 30, 000 psi
• Standard thermal systems feature 10ft ( 3m) armored capillary with ambient temperaturecompensation
• Available in Stainless Steel ( Model 242ES)
• Actuated by 224 DPU
